TS3USB30EDGSR
Manufacturer:
Texas Instruments
Mfr.Part #:
TS3USB30EDGSR
Datasheet:
Description:

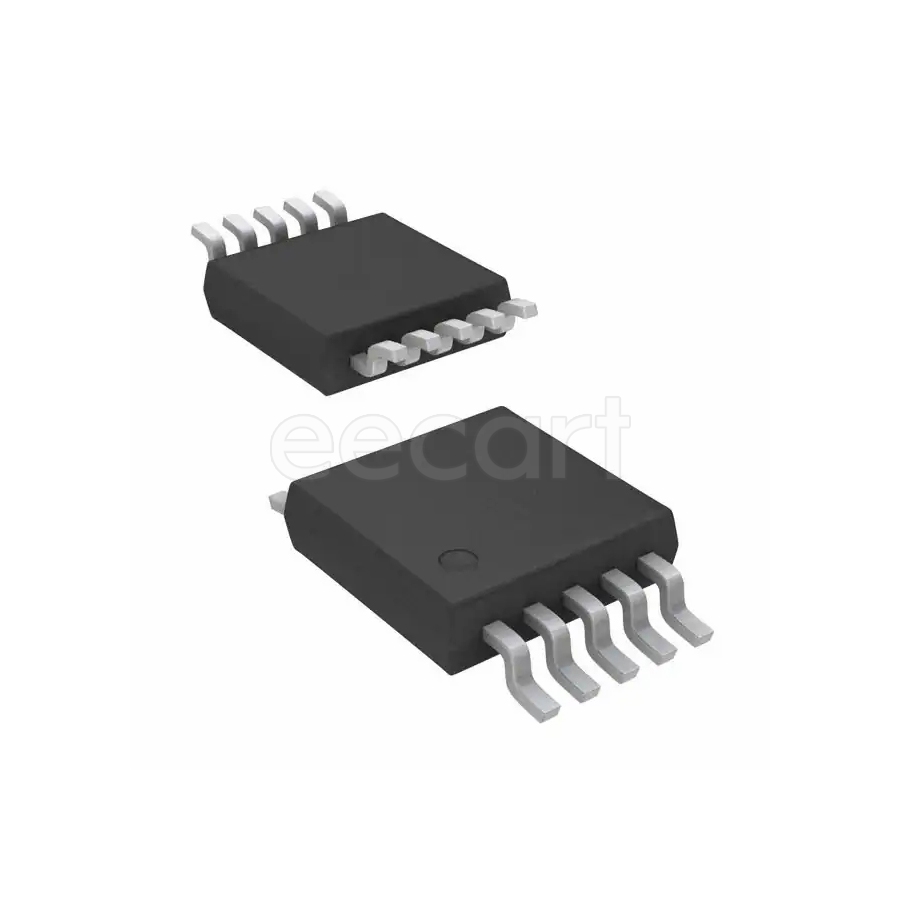

Interface ICs VSSOP-10 SMD/SMT 480 Mbps
| Parameter | Value |
|---|---|
| Length | 3 mm |
| Width | 3 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 10 |
| Resistance | 10 Ω |
| Height | 1.07 mm |
| Packaging | Reel |
| Thickness | 1.02 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Non-Inverting |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Number of Circuits | 1 |
| Bandwidth | 900 MHz |
| Lifecycle Status | Production (Last Updated: 5 days ago) |
| Max Supply Voltage | 4.3 V |
| Min Supply Voltage | 3 V |
| Ambient Temperature Range High | 85 °C |
| Number of Channels | 2 |
| Turn-On Delay Time | 25 ns |
| Turn-Off Delay Time | 30 ns |
| Operating Supply Current | 1 µA |
| -3db Bandwidth | 900 MHz |
| High Level Output Current | 64 mA |
| Low Level Output Current | 64 mA |
| Number of Inputs | 2 |
| Data Rate | 480 Mbps |
| Supply Type | Single |
| Throw Configuration | SPDT |
| Number of Outputs | 4 |
| Nominal Supply Current | 1 µA |
| Drain to Source Resistance | 10 Ω |
| On-State Resistance | 6 Ω |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 days ago) |
| Operating Supply Voltage | 3 V to 4.3 V |
Stock: 801
Distributors
pcbx
pcbxUnit Price$0.66835
Ext.Price$0.66835
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.66835 | $0.66835 |
| 10 | $0.54586 | $5.45860 |
| 25 | $0.50330 | $12.58250 |
| 50 | $0.46405 | $23.20250 |
| 100 | $0.42787 | $42.78700 |
| 300 | $0.39446 | $118.33800 |
| 500 | $0.36365 | $181.82500 |
| 1000 | $0.34377 | $343.77000 |
